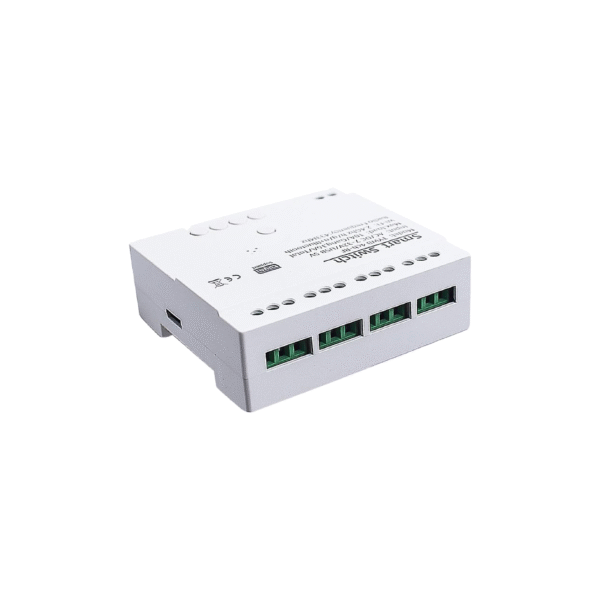

Wi-Fi 4 Channel relay Module

Name: Wi-Fi 4 Channel relay Module
SKU: 1638
Availability: InStock

9.900 .د.ب

Category: Smart Switches

Description

Control the Electrical Equipment by your phone using the hidden smart module.

Specifications

Input voltage: 85V-250VAC 50/60Hz /Micro USB 5V

Networking: WiFi+BLE ||| or||| ZigBee 3.0 +RF=433Mhz

Wireless Standard: 2.4GHz IEEE802.11 b/g/n ||| or||| IEEE802.15.4 b/g/n

Input Wire: L+N / Micro USB

Number of channel :1ch ,2ch,4ch

Power rating: Current:10A ?Max load: 3500W max / Total

Standby power: 0.3W

Product size : 81*76*28mm

Box size: 86*80*32mm

Packing weight:70g,90g,120g

Life : 50000 times

Housing Color : White

Operation Temperature?-20? ? +70?

Working humidity :<80%

Fire-protection rating: 94-V0

Plastic material: PC flame retardant material

support system: Alexa – Google home
